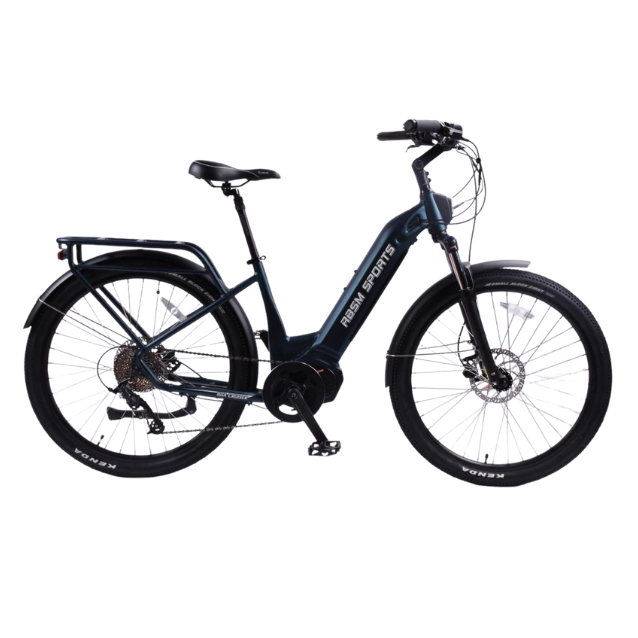

Rbsm Sport Boa Cruiser Bike


Boa cruiser bike is a sporty, aluminum alloy framed, 38km/h (23.6 mph) pedaling power assist electric bicycle. You can barely tell it’s an e-bike using a patented invisible and drop-down battery. The boa cruiser bike is sleek and luxurious. Uses one cable design, no useless cables.

Categories: ,



Frame: 27.5″ city bike
Down tube: YEMA down tube
Motor holder: for Ananda motor
Front fork: XCM-ATB-HLO 27.5, suspension fork, stem length: 190,no logo, SF18-XCM-ATB-DS-HLO 27.5 TS 190/0 YS-727 BID/CP W/O LOGO T100
Handlebar: NR-AL-124BT-FOV Bending handle, ALLOY, Anodized black, φ22.2×W680, middle extrusion knurling, Bar.bore=φ31.8mm, RISE:38, no logo
Stem: TDS-C269-8FOV (PASS PAHS)@31.8*@28.6 EXT 110 ALLOY W/O:LOGO
Headset: H156 H156 φ 28.6/44-56/30, combination height: 21.8 ± 1mm, 8pcs, aluminum top plug 15.4mm, W/sunflower component, w/o label
Chain: KMC E9 1/2″*3/32″*118P
Pedal: B249D B249D black aluminum alloy, with beads, 9/16 teeth, equipped with AS/BS/CPSC standard reflectors
Grip: J907 J907 130/130MM L/R, sewing handle cover, black leather black thread, black ring
throttle 130X 130X left and right universal waterproof cable 230MM long, including head (supplied by Damai JL-F-Z309AG)
waterproof cable for throttle JL-F-Z309AG, with a length of 280 includ head
Front brake: HD-M285 HD-M285 Left Front Brake, Cable Length 900MM rotor TR180-24 Post mount
Rear brake: HD-M285 HD-M285 Right Rear Brake, Cable length 1650MM rotor TR180-24 Post mount
Rim: J21DH 29″*13G *36H A/V, ALLOY, BK, no logo, EN+ROHS FREE
Front hub: JA159F-DSS-QR 13GX36H disc brake hub
Rear hub: JA259R-DSS-QR 13GX36H disc brake hub
Front spoke: 13G 268L STAINLESS(304M) ED W/CP nipple 16MM B.N ROHS FREE
Rear spoke: 13G 266L STAINLESS(304M) ED W/CP nipple 16MM B.N ROHS FREE
Gear change cable outer SP: SP cap material: plastic, φ 4. Length: 1900mm, with 1 PCS of wire tail sleeve. No oil filling or black marking
Shifter: TS71-9R 9-SPD 2200MM
Derailleur: RD-M36L 9SPEED
Flywheel: TM-1009CKVN TM-1009CKVN cassette 9-S 12-36T
Motor: M100 M100 central motor 48V500W (including D10 display, chainwheel 44T, cable for sensor, cable for motor), sensor wire head not plugged in
Battery: fit SYR002 YEMA XII-B 48V 18650 battery bracket, w/ top and down brackets
battery case: YEMA battery case , including USB port
Charger: 48V/ 2A 48V 2A ,AC input line 110-240V ,2AMPS CHARGER (according to American standard) Charging port DC2.1 EN ROHS
All-in-one cable all-in-one cable
Tire: K1047 27.5*2.1 A/V 48MM BK
Tape: Nylon 27.5*14mm
Kickstand: HRA-01 HRA-01 20 “, adjustable, size from rivet to bottom: 245-305mm, W/stainless steel screw:M6 * 18, anti drop adhesive, rivet CP aluminum/plastic matte black
Seat post: SP-886 suspension Φ 27.2 * 350MM, C2/SA2-80 with logo ENC
Saddle: VL-8108 VL-8108 black w/VELO logo
Seat post clamp: KC88 Inner diameter 34.9, quick release, stainless steel aluminum nut (with gasket), copper gasket
shim: Alloy 27.2*30.8MM*60L
Fender: Iron +painting, matte black YS728 extinction 75%
Headlight: XC-259A Installed on front fork, 6V, cable length 1000, SM-2A terminal, included holder
Raillight: DR001 Installed on the rack, 6V 2-pin cable connected to the controller end SM-2A terminal cable length:1200
Wheel Reflector: HDP5-1 Installation with 13G spokes, American standard CPSC standard, W/rotating buckle installation. White
